System and opening types
Aluminium folding sliding (bifold) system, 75 mm basic depth; folds inwards, outwards, to the left or right; optional integrated side-hung door for quick passage.
Bifold doors · Schüco aluminium system
Folding Sliding System AS FD 75
Overview
Schüco AS FD 75 is the 75 mm aluminium folding sliding system, with flush-fitted outer and vent frames and a 90 mm face width at the vent joint. Vents reach 1500 mm wide by 3000 mm high at up to 150 kg, and can fold inwards, outwards, left or right for opening widths of almost 100 per cent. Three threshold heights, burglar resistance to RC 2 and an optional side-hung door are available.
Bookmarks and comparisons are saved on this device. Open Windows & Doors to compare systems side by side.
Spotlight on:
Product highlights
Published Schüco system characteristics for the Folding Sliding System AS FD 75:
Product highlights in detail
Configuration and planning
68 opening types; folds inwards, outwards, left or right; opening widths of almost 100%; 100% flush frame concept with limited visible joints; concealed transition areas.
System integration
Part of the shared AS FD 75 / AS FD 90.HI platform; Schüco AB ZDS in front of ASE/AS sun shading exists as a related product.
Key system data
- Burglary Resist: RC 2
- Acoustic Cont: Rw 47 dB
- Aluminium: 75 mm
- Double Glazing
- Triple Glazing: 50 mm
- Max Height: 3000 mm
- Max Weight: 150 kg
- Face Width: 104 mm
01 — Planning benefit
Planning benefit
Aluminium folding sliding (bifold) system, 75 mm basic depth; folds inwards, outwards, to the left or right; optional integrated side-hung door for quick passage; three threshold types
68 opening types
Folds inwards, outwards, left or right
Opening widths of almost 100%
100% flush frame concept with limited visible joints
Concealed transition areas
Optional kick plate covers
Wide colour selection with different inside/outside colours
Two vent profile widths
02 — System integration
System integration
Part of the shared AS FD 75 / AS FD 90.HI platform
Schüco AB ZDS in front of ASE/AS sun shading exists as a related product
'AS FD 75 with 15 mm threshold' is a built Schüco showroom sample
Attachments to building structure listed in the platform data sheet
03 — Gallery

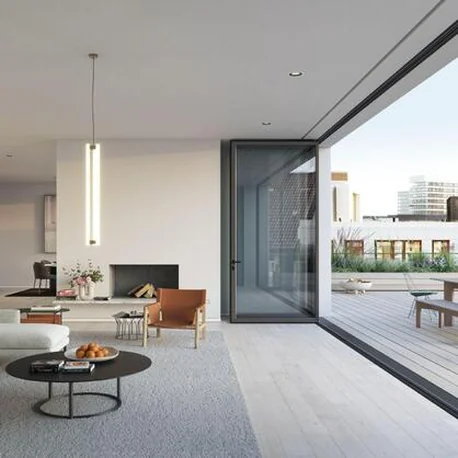

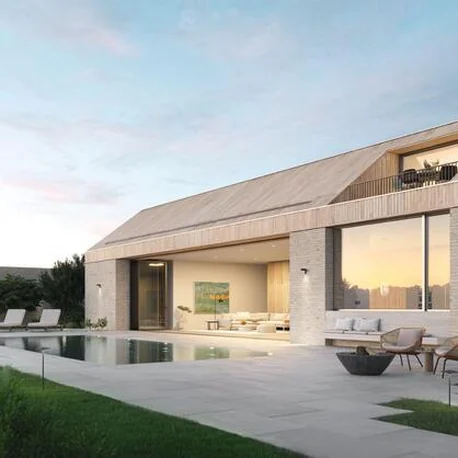

Gallery
04 — Awards
Awards
-
Cradle to Cradle Certified Bronze
-
iF Design Award 2023
-
Red Dot winner 2023
05 — Technical information
Technical information
Figures are published system maxima and minima. “Not published” means Schüco publishes no figure for that property; project values depend on configuration, glazing build-up and installation, and are confirmed by KR at tender.
Dimensions and profile
| Vent basic depth (mm) | 75 |
|---|---|
| Max. vent size, W × H (mm) | 1500 (width) x 3000 (height) |
| Max. unit size, W × H (mm) | 10500 × 3000 |
| Max. vent weight (kg) | 150 |
| Face width at vent joint (mm) | 90 / 104 (41 mm vent profile -> 90 mm with reduced glass edge cover and 15 mm glazing bead; 48 mm vent profile -> 104 mm with regular glass edge cover and 22 mm glazing bead) |
| Glazing thickness (mm) | 15–38 at 90 mm face width; 5–50 at 104 mm face width (platform sheet gives 5–38 / 5–50; India sheet gives 5–50) |
| Threshold heights (mm) | 4 / 15 / 71 |
| Opening types | 68 |
Performance
| Thermal performance | Uw from 1.1 W/(m²K) (reference: type 3 LH/3 RH, continuous outer frame, unit 4000 × 2500 mm, Ug 0.5 W/m²K); Uw down to 1.1 with triple glazing |
|---|---|
| Sound reduction | up to 47 |
| Watertightness | class E750 |
| Air permeability | up to class 4 |
| Wind load resistance | B5/C3 (product data sheet) / C3/B5 (platform data sheet) / up to B3/C2 (Norwegian data sheet) / C3 2000 Pa (India sheet) |
Security and function
| Burglar resistance | RC 2 / PAS 24 |
|---|---|
| Threshold and accessibility | three threshold heights: 4 mm for very good rollover, 15 mm for good rollover and watertightness, 71 mm continuous outer frame with watertightness up to class E750; optional kick plate covers; no level threshold |
| Automation | manual operation only; monitoring of closing available |
| Further features | integrated magnetic retaining catch; securing hooks in the guide tracks prevent vent removal; solid stainless steel tracks, reinforced outer frame and stable hinges with a 12 mm bolt diameter |
06 — Documentation
Documentation
Access required Schüco publishes Folding Sliding System AS FD 75 technical documentation behind a registered architect login. The files are not downloadable from this page.
KR holds current documentation as a Schüco fabrication and installation partner and will supply the relevant sheets for a nominated project — or arrange authorised access through Schüco's architect workplace.
07 — Specification texts
Specification texts
Specification summary for the Schüco Folding Sliding System AS FD 75. The complete, tender-ready specification text is issued by KR for a nominated project.
- Vent basic depth (mm): 75
- Max. vent size, W × H (mm): 1500 (width) x 3000 (height)
- Max. unit size, W × H (mm): 10500 × 3000
- Max. vent weight (kg): 150
- Face width at vent joint (mm): 90 / 104 (41 mm vent profile -> 90 mm with reduced glass edge cover and 15 mm glazing bead; 48 mm vent profile -> 104 mm with regular glass edge cover and 22 mm glazing bead)
- Glazing thickness (mm): 15–38 at 90 mm face width; 5–50 at 104 mm face width (platform sheet gives 5–38 / 5–50; India sheet gives 5–50)
- Threshold heights (mm): 4 / 15 / 71
- Opening types: 68
- Thermal performance: Uw from 1.1 W/(m²K) (reference: type 3 LH/3 RH, continuous outer frame, unit 4000 × 2500 mm, Ug 0.5 W/m²K); Uw down to 1.1 with triple glazing
- Sound reduction: up to 47
- Watertightness: class E750
- Air permeability: up to class 4
08 — CAD data
CAD data
Access required Schüco releases Folding Sliding System AS FD 75 CAD sections and BIM objects only to registered architects through its architect workplace. No CAD or BIM files are hosted on this page.
KR can issue the relevant sections and details for a nominated project, or help set up authorised Schüco access for your practice.
09 — Brochures
Brochures
Published Schüco literature covering the Folding Sliding System AS FD 75. KR supplies current editions directly.
Schüco AS FD 75 / AS FD 90.HI brochure
Current edition supplied by KR on request.
Schüco AS FD 75/90.HI platform data sheet
Current edition supplied by KR on request.
Schüco AS FD 75 data sheet (Norwegian)
Current edition supplied by KR on request.
Schüco AS FD 75 India product sheet
Current edition supplied by KR on request.
Specifying Folding Sliding System AS FD 75?
KR fabricates, installs and distributes the Schüco range Australia wide. Talk to our team about configurations, thresholds, glazing build-ups and site conditions.
