Schüco AWS 90 XR
Arena air-blast tested in accordance with ISO 16933 — 169 kPa at 19 m, hazard level E (low hazard). Fabricators require special approval to construct this window system.
AWS 90 XR capability
- Blast Resist: ISO 16933
Security · Schüco aluminium systems
Certified Security Systems
Overview
Burglar resistance is a property of the complete element, not of a single component. Under DIN EN 1627 a window, door, sliding system or façade is only burglar-resistant once the assembled unit has been tested and classified. The standard defines six resistance classes, RC 1 to RC 6, where RC 1 is the lowest level of protection and RC 6 the highest, and each step upward raises the static force, the tool set and the attack time the element must withstand. Schüco tests and classifies to DIN EN 1627 at its own OneLab Technology Center, both during product development and as accredited testing for project-specific and special solutions built by its fabricators. KR specifies and fabricates to the class a project actually demands.
Availability and final specification to be confirmed with KR.
Bookmarks and comparisons are saved on this device. Open Windows & Doors to compare systems side by side.
Key system data
- Burglary Resist: RC 1–RC 6
- Bullet Resist: EN 1522 FB7
- Blast Resist: ISO 16933
- Secure: EN 1627
- Aluminium
- Impact Body: 50 kg
- Automation
- Static Load: 6000 N
FB 7 is the Schüco platform ceiling, not a standard rating of any base system. Blast-resistant XR systems require special fabricator approval and project-specific configuration.
Specialist options — separate systems
Blast-resistant XR systems
Blast resistance is not carried by any standard Schüco window, door or façade system KR lists. It is delivered by two dedicated XR systems, each of which requires special fabricator approval from Schüco and project-specific configuration.
Schüco FW 80+ XR
Blast-resistant mullion/transom façade successfully tested to ISO 16933 with the classification EXV 19 (hazard level D, “very low hazard”). Depending on the glass build, class EXV 15, EXV 19 or EXV 25 can be achieved; the class is fixed per project and special fabricator approval is required.
FW 80+ XR capability
- Blast Resist: ISO 16933
Bullet resistance shown on this page as EN 1522 FB 7 is the Schüco platform ceiling — “our systems meet bullet resistance requirements up to class FB 7 in accordance with EN 1522 and EN 1523” — and is not a standard rating of any individual base system. Ballistic and blast performance is always specified, approved and certified per project.
01 — Planning benefit
Planning benefit
Burglar resistance classified on the assembled element to DIN EN 1627, across the same Schüco window, door, sliding and façade systems KR already fabricates.
Six resistance classes, RC 1 to RC 6. RC 1 is the lowest level of protection, RC 6 the highest, and the requirements placed on the element rise with the class.
Schüco describes RC 2 as the standard level of protection in German private residential construction, RC 3 as suited to somewhat increased risk, and classes above RC 3 as intended for particularly vulnerable and highly sensitive areas.
Five product groups can be tested and classified under DIN EN 1627: windows, doors, gates and sliding systems; French doors and other closures; façades; grilles; and sliding and roller shutters.
Classification is decided by testing, not by specification alone — an element is burglar-resistant only once it has achieved a class.
02 — System integration
System integration
Testing and classification are carried out at the Schüco OneLab Technology Center, both through the development programme to market readiness and as accredited testing of project-specific and special solutions for Schüco partners and fabricators.
A DIN EN 1627 test comprises three parts: resistance to static loads (DIN EN 1628), resistance to dynamic loads (DIN EN 1629) and resistance to manual attack (DIN EN 1630).
Static loading is applied with a pressure ram at the corners of the opening elements, the corners of the infill and the locking points. For an RC 3 test several points are loaded at 6000 N.
Dynamic loading strikes the specimen with a 50 kg impact body at specified points, simulating a shoulder impact; the drop height depends on the class.
Manual attack uses a tool set and attack time set by the class. For RC 3 the attack time is limited to five minutes and may include several screwdrivers and a large crowbar; creating an opening large enough for passage is the failure criterion.
Submitting an element for test requires two identical specimens, the intended resistance class, drawings in PDF or DWG, and a parts list. KR prepares this package for project-specific units.
03 — Gallery
Gallery

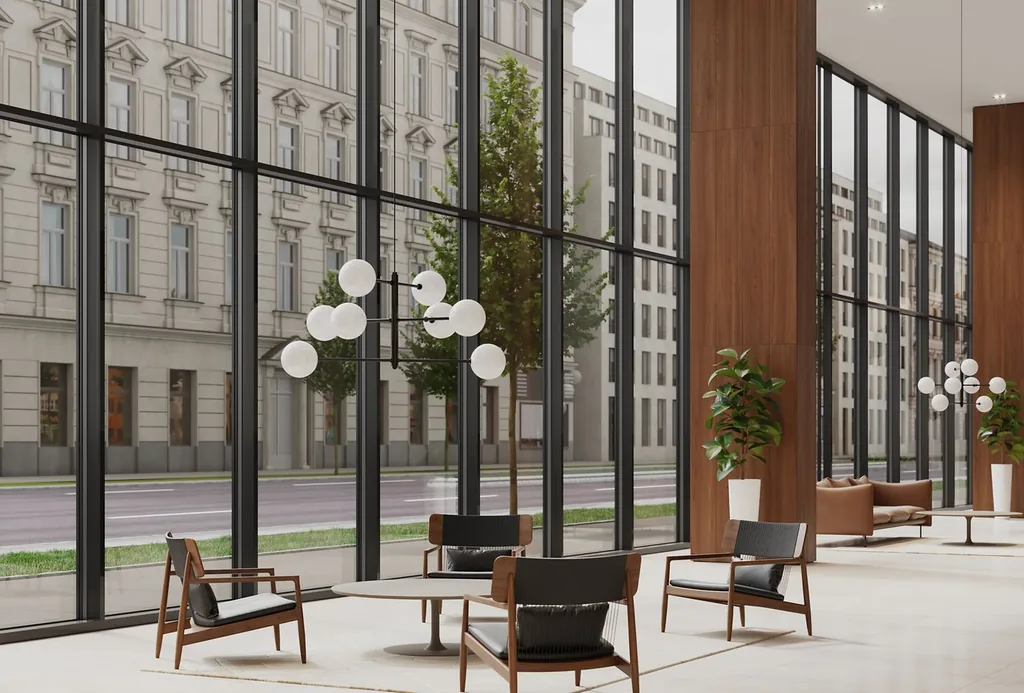

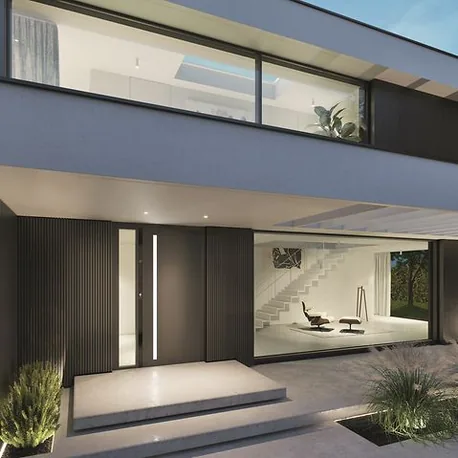

Photography shows KR-supplied Schüco systems in general application. It does not depict a specific tested and classified RC element.
04 — Technical information
Technical information
Figures below are the published DIN EN 1627 test parameters. “Not published” means Schüco publishes no figure for that property. The class an individual element achieves depends on the system, hardware, infill and installation, and is confirmed by KR at tender.
Classification
| Standard | DIN EN 1627 |
|---|---|
| Resistance classes | RC 1 to RC 6 (RC 1 lowest, RC 6 highest) |
| Residential guidance | RC 2 described by Schüco as the standard level of protection in German private residential construction |
| Increased risk | RC 3 for somewhat increased risk; above RC 3 for particularly vulnerable and highly sensitive areas |
| Product groups | Windows, doors, gates and sliding systems; French doors and other closures; façades; grilles; sliding and roller shutters |
Test regime
| Static load | DIN EN 1628 — pressure ram at corners of opening elements, corners of infill and locking points. RC 3: several points at 6000 N |
|---|---|
| Dynamic load | DIN EN 1629 — 50 kg impact body, drop height set by class, simulating a shoulder impact |
| Manual attack | DIN EN 1630 — tool set and attack time set by class. RC 3: five minutes, tools may include several screwdrivers and a large crowbar |
| Failure criterion | Creation of an opening large enough for passage |
| Resistance times, RC 1 / RC 2 / RC 4 – RC 6 | Not published on the referenced Schüco source |
| Test submission | Two identical specimens, intended resistance class, drawings in PDF or DWG, parts list |
Source: Schüco OneLab Technology Center — testing of burglar resistance on building elements to DIN EN 1627.
05 — Documentation
Documentation
Access required Schüco publishes burglar-resistance test reports and system certification behind a registered login. The files are not downloadable from this page.
KR holds current documentation as a Schüco fabrication and installation partner and will supply the relevant certificates and test evidence for a nominated project — or arrange authorised access through Schüco's architect workplace.
06 — Specification texts
Specification texts
Specification summary for Schüco certified security systems. The complete, tender-ready specification text is issued by KR for a nominated project and names the specific Schüco system and resistance class.
- Standard: DIN EN 1627
- Resistance classes: RC 1 to RC 6
- Test parts: DIN EN 1628 static load, DIN EN 1629 dynamic load, DIN EN 1630 manual attack
- RC 3 static load: several test points at 6000 N
- RC 3 attack time: five minutes
- Dynamic impact body: 50 kg, drop height per class
- Testing body: Schüco OneLab Technology Center, accredited testing and classification
- Element class: Confirmed by KR per project — depends on system, hardware, infill and installation
07 — CAD data
CAD data
Access required Schüco releases CAD sections and BIM objects for its security-classified systems only to registered architects through its architect workplace. No CAD or BIM files are hosted on this page.
KR can issue the relevant sections and details for a nominated project, or help set up authorised Schüco access for your practice.
08 — Brochures
Brochures
Access required Printed and PDF collateral covering Schüco burglar resistance is distributed through Schüco's partner channel rather than public download.
Specifying a resistance class?
KR fabricates, installs and distributes the Schüco range Australia wide. Talk to our team about the class a project needs, the hardware and infill that class requires, and the evidence required at handover.
Enquire with KR Back to Windows & Doors
Schüco is a registered trade mark of Schüco International KG. Resistance class is a property of the complete tested element and depends on configuration, hardware, infill and installation.
