System & opening types
56 mm filling depth (23 mm also available) on a 20 mm central sight; 1, 2, 3 and 4-rail layouts plus a 90° corner junction; manual or motorised.
Sliding Systems · Sosoares minimalist aluminium system
OS-Triple [56mm] Minimalist Sliding System
Overview
Specially conceived for larger frames, the OS minimalist sliding system rose as an answer to the most contemporary architectural trends, aiming to combine the maximum transparency with the minimum structural view, in all its sill versions: Traditional, Concealed with aluminium cover and Concealed with continuous flooring. Combined with the motorized opening system, the OS System allows the design of frames of large dimensions, allowing as such an extra area of glazing. To the three strands of our minimalist sliding OS system — OS-Simple, Double and Triple — we now add the version OS-Concealed Sill.
OS minimalist sliding system with thermal break. Also referenced as "Sistema OS Triple" or "Sistema OS-T [56mm]".
Bookmarks and comparisons are saved on this device. Open Windows & Doors to compare systems side by side.
Spotlight on:
Product highlights
Published Sosoares system characteristics for the OS-Triple [56mm]:
Product highlights in detail
Configuration & planning
14.00 m², 1000 kg (motorised) and 6000 mm per sash; 23 mm or 56 mm tempered filling.
System integration
Triple-glazing capable for higher thermal and acoustic performance, motorised heavy-sash operation, and powder-coated, anodised or bicolour finishes.
Key system data
- Aluminium: 56 mm
- Triple Glazing: 56 mm
- Sightline: 20 mm
- Max Weight: 1000 kg
- Max Height: 6000 mm
- Motorised
Sightline is the 20 mm central sight; the lateral sight is 30 mm and the upper/lower sights are 6 mm. The 1000 kg maximum weight per sash is reached with motorisation. Filling is available at 23 mm or 56 mm; 56 mm supports triple glazing. Full figures are tabled under Technical information.
01 — Planning benefit
Planning benefit
OS-Triple is the largest-section member of the OS minimalist sliding family, using a 56 mm filling/profile depth (with a 20 mm central sightline) and supporting triple glazing, for projects that need extra thermal and acoustic performance combined with maximum transparency. As with OS-Simple and OS-D+, it can be executed with a traditional sill, a concealed sill with aluminium cover, or a concealed sill with continuous flooring for a level indoor–outdoor threshold.
System & opening types
- Filling/profile depth: 56 mm (also available as 23 mm)
- Central sightline: 20 mm · Lateral sightline: 30 mm · Upper/lower sights: 6 mm
- Sill options: Traditional / Concealed with aluminium cover / Concealed with continuous flooring
- Operation: Manual (standard) or Motorised (optional — required to reach the maximum 1000 kg/sash rating)
- Rail configurations: 1-Rail, 2-Rail, 3-Rail and 4-Rail multi-sash layouts, plus a 90° corner junction configuration
Configuration & planning
- Maximum area/sash: 14.00 m²
- Maximum weight/sash (with motorisation): 1000 kg
- Maximum height/sash: 6000 mm
- Filling (tempered glass): 23 mm or 56 mm
- For other dimensions, contact our Technical Department
System integration
- Triple-glazing capable, for enhanced thermal and acoustic performance versus OS-Simple/OS-D+
- Motorised opening compatible with large-format, heavy sashes (up to 1000 kg)
- Finish options: Powder coated / Anodised / Bicolour
02 — System integration
System integration
Triple glazing capability — 23 mm or 56 mm filling depth, with 56 mm supporting triple-glazed tempered units — the defining feature versus OS-Simple/OS-D+.
Motorised operation for heavy sashes — Motorisation is required to reach the system's maximum 1000 kg/sash rating.
Concealed sill / continuous flooring — Traditional, concealed with aluminium cover, or concealed with continuous flooring for a level, barrier-free indoor–outdoor transition.

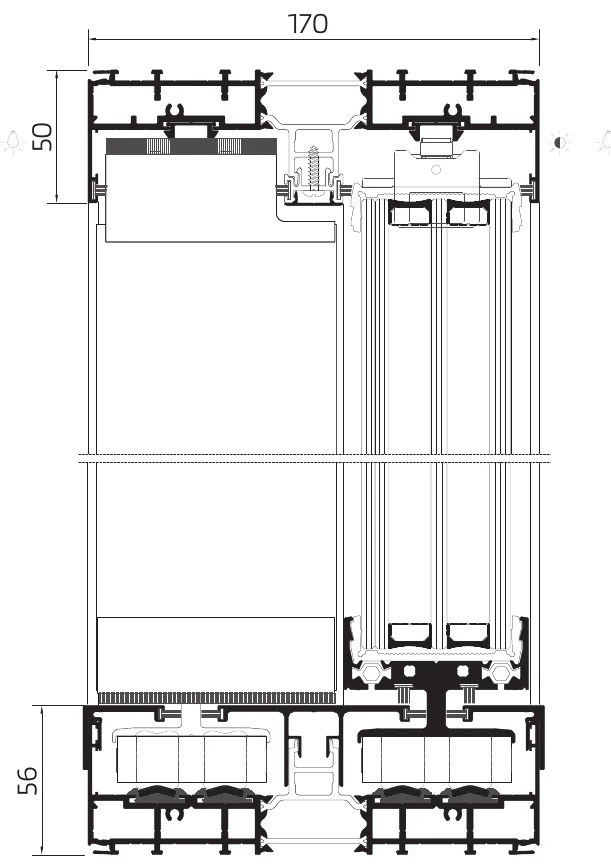

Profile cross-section & rail configurations — 56 mm filling/profile depth (vs. 32 mm for OS-Simple/OS-D+), with a 20 mm central sightline; available in 1-Rail, 2-Rail, 3-Rail and 4-Rail multi-sash layouts plus a 90° corner junction configuration.
Shared finish & quality scheme — Powder coated / Anodised / Bicolour finishes, plus the group-level Qualicoat Seaside / Qualanod certified finish range.
Related OS-family systems — OS-Simple (single track, 32 mm) and OS-D+/OS-Double (double track, 32 mm) are the smaller-section members of the same family.
03 — Gallery
Gallery

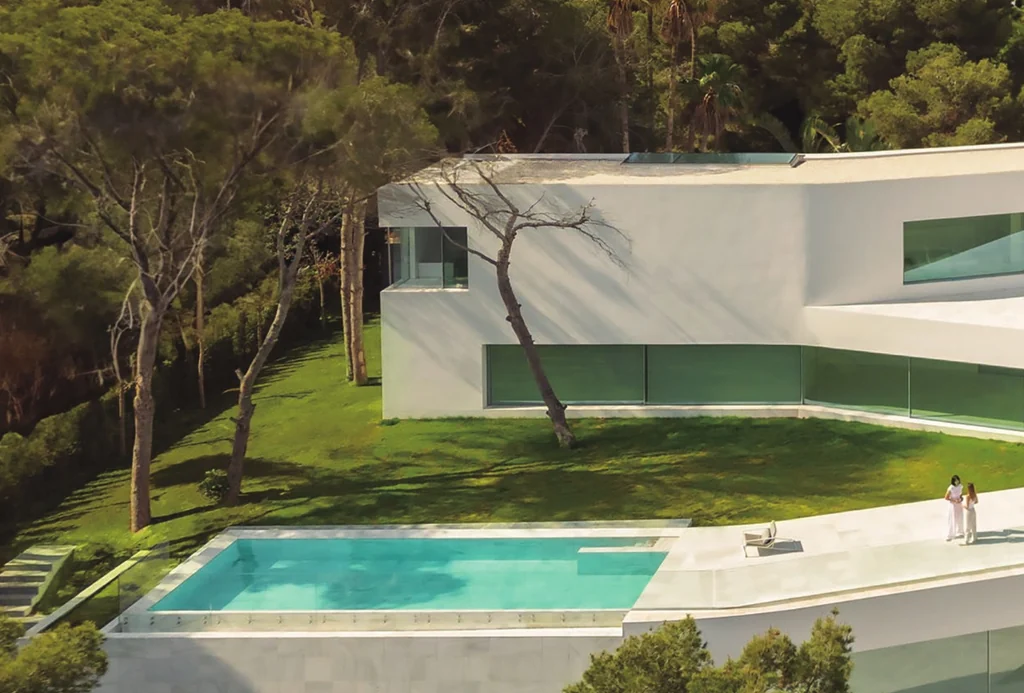

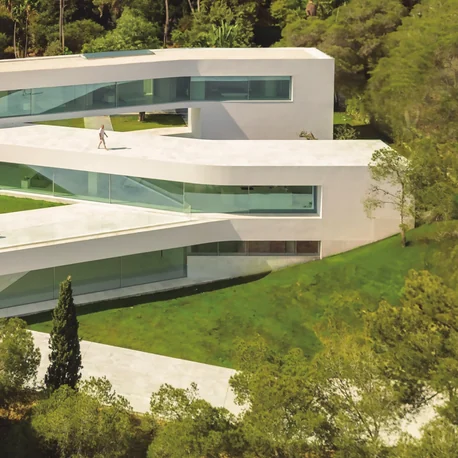

Sections, renders and project photography reproduced from the Sosoares product catalogue. Architect and photographer credits are carried through as published.
Not supplied Project photography not in the supplied material
The supplied final page content also lists JD House (Portugal), PK House (Israel) and TV House (Israel). Those photographs are not present in the KR Sosoares catalogue supplied to us and are not reproduced here rather than substituted with stand-in imagery. KR can supply them on request once rights are confirmed.
04 — Awards & accreditations
Awards & accreditations
Qualicoat Seaside and Qualanod quality-certification marks for the anodising and powder-coating finish processes
Single Environmental Title (TUA) — Portuguese environmental-compliance programme
Class A+ Platform membership, supporting clients on energy-efficiency matters
CE Marking to EN 14351-1:2006+A1:2010, the same declaration as OS-D+
Who makes this
Grupo Sosoares originates from "Sosoares – Máquinas e Ferragens, Lda.", founded in 1979, and today comprises four companies (Sosoares S.A., Alfa Sul S.A., Alulider Lda., Portalex S.A.) covering design, development, production and commercialisation of aluminium frames and glass systems under the own brand "Sistemas Euro 2000®".
05 — Technical information
Technical information
Figures are published Sosoares system maxima, minima and test results, stated with the standard or test reference under which they were determined. Project values depend on configuration, glazing build-up and installation, and are confirmed by KR at tender.
Dimensions and profile
| Fixed frame — 1 / 2 / 3-Rail | 77.5 | 169.6 | 261.7 mm |
|---|---|
| Mobile frame | 70 | 94 | 118.1 | 119.5 mm |
| Middle / central profiles | 90 | 125.5 | 145.5 mm |
| Lateral sightline | 30 mm |
| Central sightline | 20 mm |
| Upper / lower sights | 6 mm |
| Filling (tempered glass) | 23 mm or 56 mm |
| Cuts | 45° / 90° |
| Sealing | S-FIN pile seal + EPDM joints |
| Finishes | Powder coated | Anodised | Bicolour |
| Rail / sash configurations | 1-Rail, 2-Rail, 3-Rail, 4-Rail, 90° corner junction (2-Rail per wing) |
| Maximum weight / sash (motorised) | 1000 kg |
| Maximum area / sash | 14.00 m² |
| Maximum height / sash | 6000 mm |
Performance
| Thermal transmittance — frame (Uw), standard solution | 1.07 W/m²K — ISO 10077-1:2017 / ISO 10077-2:2017 |
|---|---|
| Thermal transmittance — frame (Uw), thermally improved solution | 0.90 W/m²K — ISO 10077-1:2017 / ISO 10077-2:2017 |
| Thermal transmittance — glass (Ug) | 0.60 W/m²K, triple glazing — ISO 10077-1:2017 / ISO 10077-2:2017 |
| CE marking | EN 14351-1:2006+A1:2010 (same as OS-D+) |
Security and function
| Threshold | Traditional raised sill, concealed sill (aluminium cover), or concealed sill with continuous flooring for a level threshold, including reduced-mobility access |
|---|---|
| Sealing | S-FIN pile seal plus EPDM joints |
06 — Documentation
Documentation
Sosoares publishes the OS-Triple [56mm] technical documentation openly. KR holds current editions as Sosoares' Australian partner and will supply the relevant sheets for a nominated project.
Sosoares OS-Triple product page (PT)
Published by Sosoares. Opens in a new tab.
Grupo Sosoares — company and systems overview (PT)
Published by Sosoares. Opens in a new tab.
Technical bulletin Nº 0545 — Novos aros monorail OS-Triple
Published by Sosoares. Opens in a new tab.
Technical bulletin Nº 0664 — Novo fecho lateral OS Triple
Published by Sosoares. Opens in a new tab.
Technical bulletin Nº 0672 — Solução fechadura OS Triple
Published by Sosoares. Opens in a new tab.
Request the full OS-Triple [56mm] documentation from KR Contact page
07 — Specification texts
Specification texts
Specification summary for the Sosoares OS-Triple [56mm]. The complete, tender-ready specification text is issued by KR for a nominated project.
- Minimalist sliding system, 56 mm filling/profile depth (23 mm option also available), thermal-break construction, triple-glazing capable.
- Fixed frame 77.5 / 169.6 / 261.7 mm (1/2/3-Rail); mobile frame 70 / 94 / 118.1 / 119.5 mm; middle/central profiles 90 / 125.5 / 145.5 mm; lateral sightline 30 mm; central sightline 20 mm; upper/lower sights 6 mm.
- Rail configurations: 1-Rail, 2-Rail, 3-Rail, 4-Rail, and 90° corner junctions.
- Glazing: 23 mm or 56 mm tempered glass; 56 mm supports triple glazing.
- Maximum per sash: 14.00 m², 1000 kg (with motorisation), 6000 mm height.
- Thermal performance: Uw 1.07 W/m²K (standard) or 0.90 W/m²K (thermally improved), Ug 0.60 W/m²K (triple glazing) — tested to ISO 10077-1:2017 / ISO 10077-2:2017.
- Sealing: S-FIN pile seal + EPDM joints.
- Finishes: Powder coated / Anodised / Bicolour.
- CE marking: EN 14351-1:2006+A1:2010 (same as OS-D+).
- Sill options: traditional, concealed with aluminium cover, or concealed with continuous flooring.
- Operation: manual (standard) or motorised (required above certain weight/area, per the system's own max ratings).
08 — CAD data
CAD data
On request BIM and CAD objects for the OS-Triple [56mm] system are available on request from KR Installations.
KR issues the relevant sections, jamb and sill details for a nominated project, and can arrange project-specific profile geometry through the Sosoares technical department.
09 — Brochures
Brochures
On request Brochures for the OS-Triple [56mm] system are available on request from KR Installations.
KR supplies the current Sosoares product catalogue and the system-specific literature that matches your project scope.
Specifying the OS-Triple [56mm] system?
KR is Sosoares' Australian partner and fabricates, installs and distributes the OS minimalist range Australia wide. Talk to our team about configurations, thresholds, glazing build-ups and site conditions.
